Customized System Design
Not only measuring instruments, Tsuruga provides customized system design suitable for customers’ needs.
Some examples:
- LED Lamp Auto Test Equipment
- LED Lighting Apparatus Auto Test Equipment
- Wireless Multipoint Temperature-humidity Data Collection System
- Temperature and Humidity Meter
- Fan Motor Auto Test Equipment
- 30kV DC Withstand Voltage Tester (Pin Hole Tester)
- 3 Stage Digital Large Back Indicator
- Temperature Rise Tester of Lightening Apparatus
- Oil Water Separation Filter Performance Evaluation Apparatus
- Large diesel engine circulatory system operation monitoring device
- Heat Stroke Prevention System (WBGT)
- 60 CH Ohm meter
- Production Line Rationalization System
- Switch Endurance Test Equipment
- 3-Dimensional Analysis Apparatus of Sound and Light
- Coil Winding Tester
- 10 CH Pin Hole Tester
- 400 CH Battery Discharge Testing system
- Heat Leakage Tester

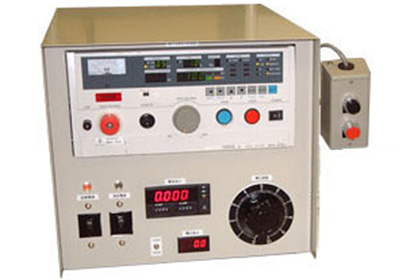

LED Lighting Apparatus Auto Test Equipment
Specification:
- ・Insulation Resistance Test
- ・Withstanding Voltage Test
- ・Lighting Test
- ・Voltage Measurement
- ・Current Measurement
- ・Power Measurement (option)
Application:
- ・General electric apparatus

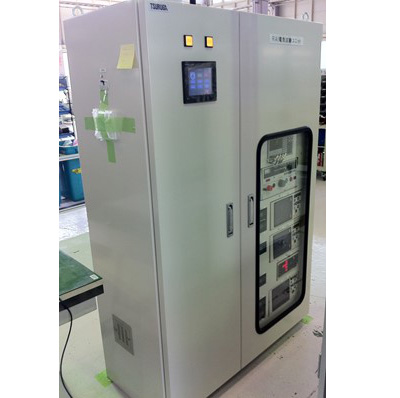

Fan Motor Auto Test Equipment
Specification:
- ・Insulation test
- ・Withstanding voltage test
- ・Capacitor measurement test
- ・Electric Power test
- ・Motor torque test
- ・No load test
- ・Motor axial runout test
- ・Speed test
Application:
- ・Fan motor test

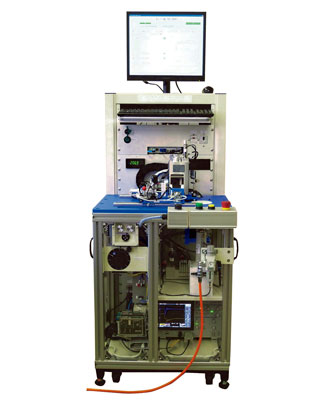

Coil Winding Tester
Specification:
- ・Output Voltage measurement( 0.0 to 40.0 kV)
- ・Damping time measurement
- ・Output wave measurement
Application:
- ・Motorcycle ignition test

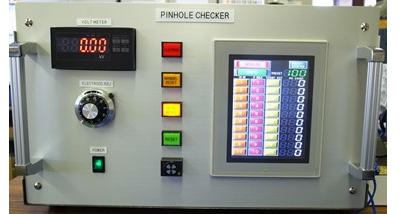

10 CH Pin Hole Tester
Specification:
- ・Output Voltage DC 0.00〜3.00kV
- ・Current Capacity DC 2mA/CH
- ・Pin hole alarm output
- ・Pin hole counter with preset stop
- ・Recode to SD Card ( option )
Application:
- ・Thin film pin hole test

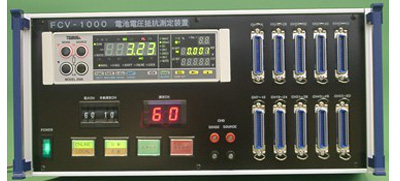

60 CH Ohm meter
Specification:
- ・AC 4-lead differential resistance
- ・Voltage measurement (max 60 ch)
- ・mΩ measurement (max 60 ch)
- ・USB Interface
Application:
- ・Fuel cell battery test

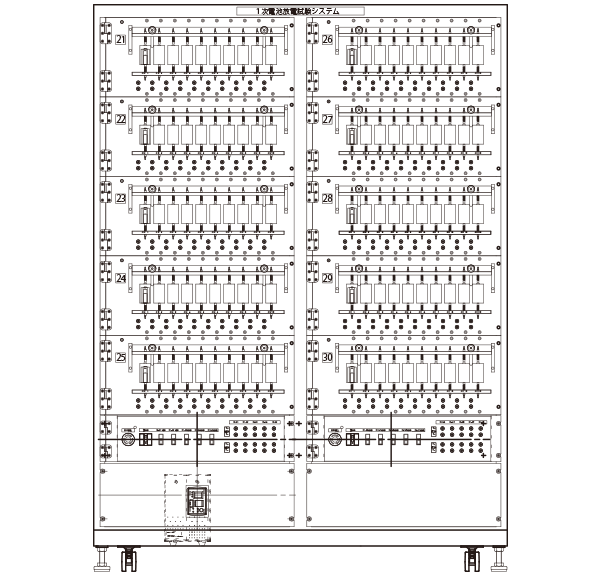

400 CH Battery Discharge Testing system
Specification:
- ・D, C, AA, AAA, N size cell
- ・Voltage measurement (max 400ch)
- ・1 to 3 condition setting / Board
- ・Auto discharge graph print out
- ・Data output (csv file format)
Application:
- ・Dry cell battery discharge test

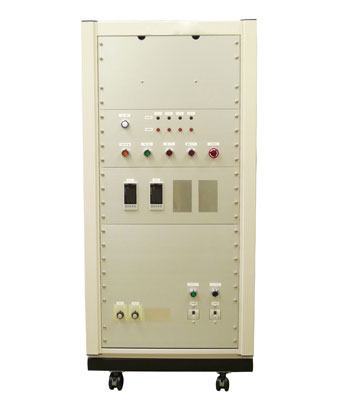

Heat Leakage Tester
Specification:
- ・Power supply voltage: 90～110V 50/60Hz
- ・External dimension: 600W×600D×1329.5Hmm
- ・Weight: Approx. 110kg
- ・Operating temperature range : 5 to 40 ° C
- ・Operating humidity range : 20 to 80% RH (non-condensing)
Main functions:
- ・Temperature control of temperature control equipment
- ・Temperature distribution measurement
- ・Power consumption measurement
- ・Data recording
Application:
- ・Performance test of thermostatic chamber, refrigerator etc.
