Digital Meter
Micro Printer
MODEL 442B
- ■ 96×96 mm size thermal printer
- ■ Input is 8 digits parallel with BCD
- ■ Available with calendar function, interval printing function.
- ■ Possible of printing channel number and message printing.
- ■ Time, minute, second are displayed by red LED.
Standard Specifications
Model Designation
| 442B | - | □ |
| ① |
①Input Interface
| Code | Power supply |
|---|---|
| A | AC 100 to 240 V |
| B | DC 24 V ± 10% |
General Specifications
| Input | 8 digits parallel BCD |
|---|---|
| Print style | Thermal line dot. |
| Character | Alphabet, Numbers, Katakana, Symbols, etc. |
| Dot | 16 × 16（2 mm × 2 mm） |
| Digit | 24 digits, Max. |
| Printing speed | Approx. 22.5 mm/s, 6 lines/s, Max. Note) Printing rate: Less than 16% |
| Paper feeding | 3.75 mm pitch |
| Printing width | 46 mm |
| Life time | At 25 °C
|
| Display | 6 digits red LED Hour, Minute, Second |
| Accuracy | ±3s/day (at 25°C) |
| A leep year adjustment | Automatic adjustment till 2099. |
| Power failure measure | Calendar clock works. (Battery life: approx. 10 years) |
| Paper | 58 mm width × 48φ (inside diameter 12φ), Length 25 m (approx. 6500 lines printable), Use specified chart paper, otherwise printing quality and products lifetime will be out of warrantee. |
| Power supply | AC 100 to 240 V 50/60 Hz, DC 24 V ± 10% |
| Power range | AC 90 to 250 V, DC 21.6 to 26.4 V |
| Power consumption | AC 100 V： 15 VA max 3.2 VA AC 200 V： 16 VA max 5 VA DC 24 V： 500 mA max 55 mA |
| Operating temperature & humidity | 0 to 50°C, less than 85% RH（no condensation） |
| Storage temperature | -20 to 60°C |
| Weight | Approx. 700g |
| Installation | Panel mounting |
| Withstand voltage | Input / Output / Power – external case AC 1500 V. for 1min. |
| Insulation resistance | Input / Output / Power – external case DC 500 V, More than 50 MΩ |

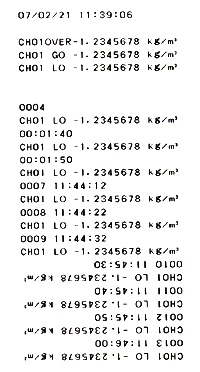

Printing example

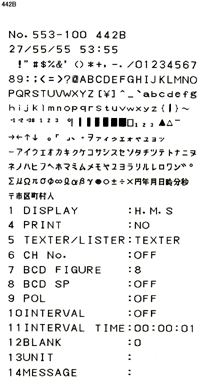

Printing test
